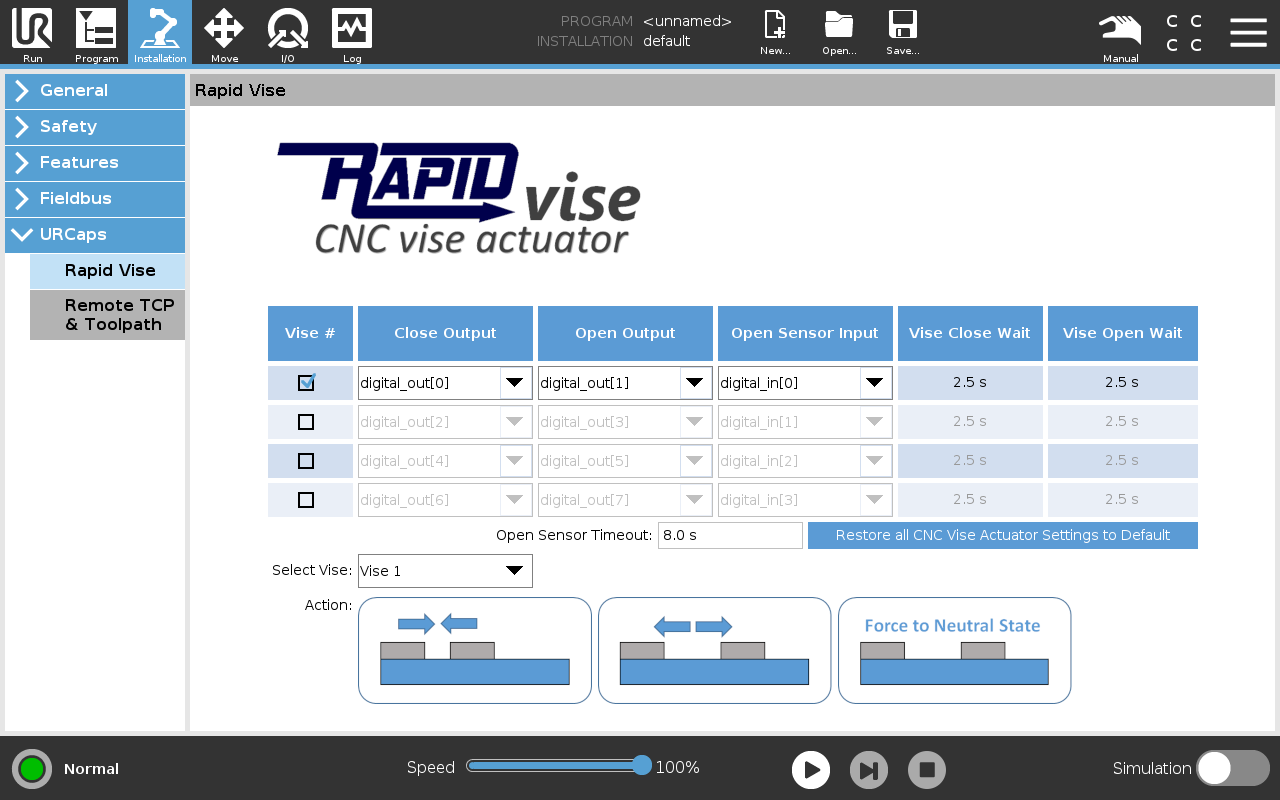

Precisely automate your existing milling machine vices without overhauling your current production line. The Rapid Vise UR+ Kit is turnkey: CNC Vise Actuator(s), a pneumatic control box, cables, airlines and sensors along with UR Cap software allows you to control each vise through the Universal Robot Polyscope Interface. Simply integrate this kit into your existing production line and enjoy precise and repeatable vise automation.

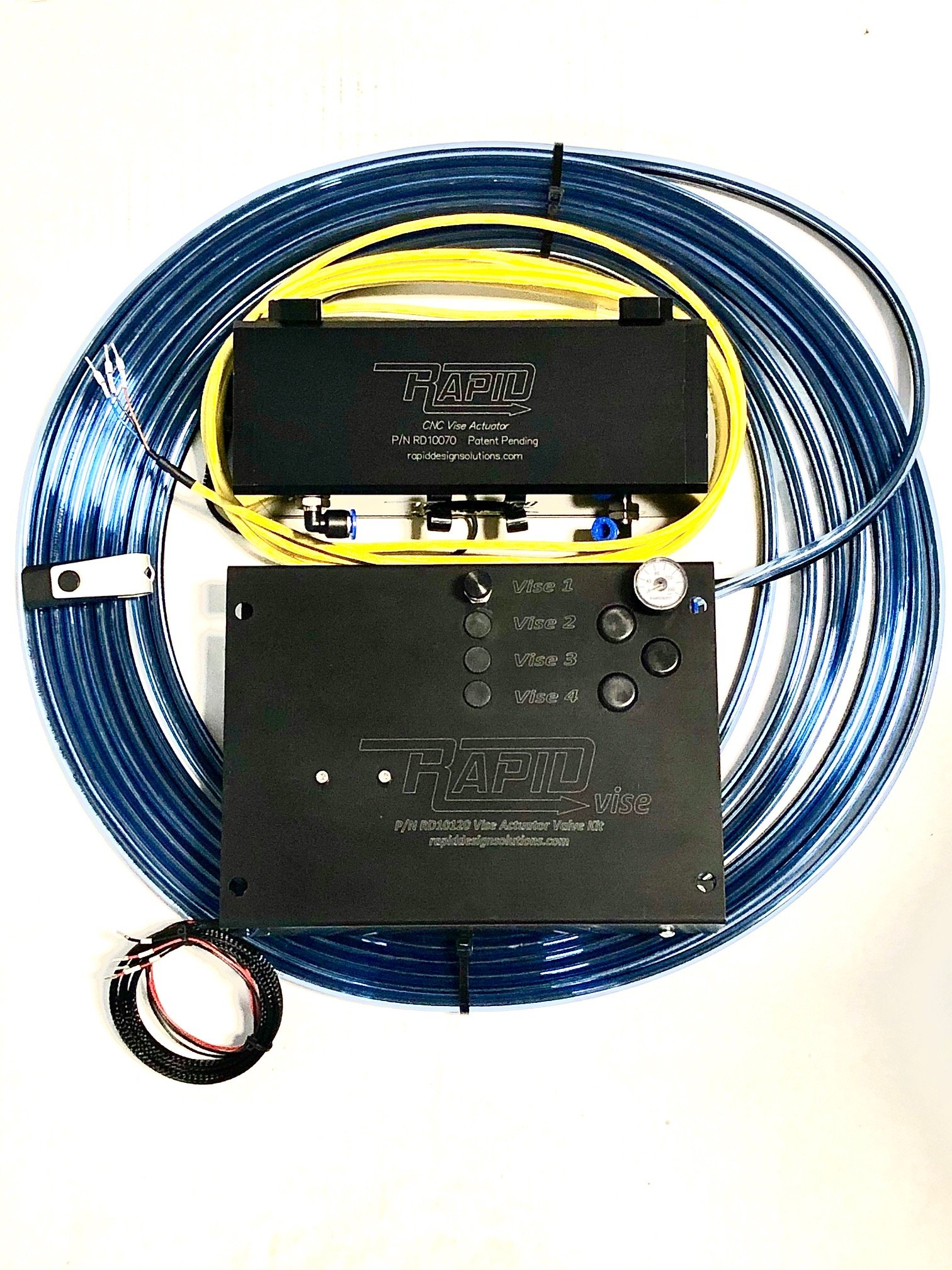

Each kit includes:
1-4 CNC vise actuators with sensors
1 pneumatic control box with 1-4 adjustable vise ports
1/4" OD x 25' bonded airline pre-terminated to the control box for each CNC vise actuator
Pre-terminated M8 sensor cords for each actuator
USB drive containing UR cap file and UR+ Kit Quickstart video
Lead time of five days.
-
-
•Repeatability of <.0002”*
•Clamping force Repeatability of < ½ ft-lb
•High quality three position valves
•Optional IP67 open switch (sensor) for a closed loop workholding system
•Magnetically mounts onto robot control box for quick installation
•Accomodates up to four CNC vise actuator
•Clamping torque adjustable to 50 ft-lbs (see datasheet for details)
•225 degrees rotational travel
•Fits most manually operated 6" milling machine vises with 3/4" hex handle
•Does not un-clamp if power or air pressure is lost
*tested with Kurt DX6 crossover vise, other vises may vary
Orange Vise Adapter Kit
•Includes adapter plate with Magnets, Socket Adapter, and Magnetic socket
•Quick tool-less installation and removal after initial adjustment
•Works on all 3-Axis Orange Vises including dual station vises
•Adds 1.700" of protrusion in the (Y-Axis) to the Actuator setup.
•+$195 option per actuator
